Modern stage equipment has long gone beyond amateur solutions. If you move from a rehearsal base to a concert venue, the issue of switching sound and power becomes critically important. That is why Speakon and Powercon connectors are today the standard for connecting professional acoustics - from small concerts to large-scale festivals.

Traditional Jack 6.3 mm and XLR connectors are effective for linear signals, but are not adapted to high loads. The development of amplification systems and the emergence of high-class passive acoustics have led to the need for connectors that reliably operate with high current without the risk of overheating.

Another problem is the lack of fixation. In stage conditions, even a slight movement of the cable can lead to its accidental disconnection. At a live performance, this means not just inconvenience, but a complete breakdown of the sound.

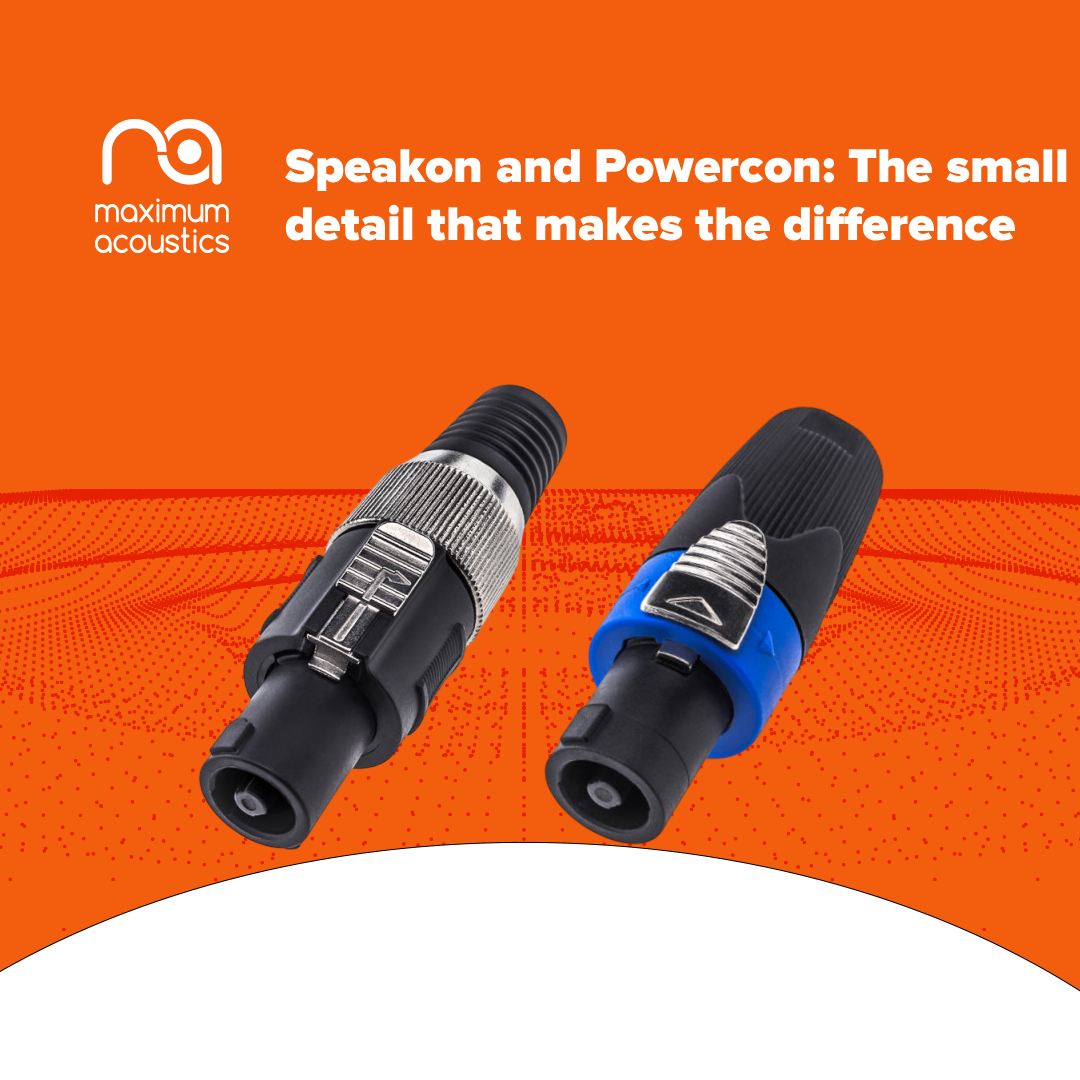

Speakon connector: the standard for transmitting a powerful signal

The Speakon connector is designed specifically to work with powerful speaker systems. Its key advantage is a significantly larger contact area, which ensures stable signal transmission from the amplifier to the speakers without loss and overheating. Unlike Jack, it is fully insulated, which eliminates the risk of short circuits during connection.

The Quick Lock locking mechanism deserves special attention. The connector works on the “insert-turn” principle: after insertion, the plug is fixed by turning and cannot accidentally pull out even when the cable is pulled or the stage vibrates.

There are different types of Speakon. Two-pin connectors are used for standard connection of passive speakers, while four-pin models allow signal transmission for bi-amp systems. In such configurations, one cable can simultaneously transmit a signal to the low-frequency and high-frequency drivers, which simplifies sound switching and reduces the number of cables on the stage.

Powercon: more than just a power cable

Regular IEC cables, often called "computer" cables, are not designed for intensive stage use. They are easily pulled out, have no fixation and can lose contact under the influence of vibrations from subwoofers.

The Powercon connector solves these problems. It is a full-fledged power connector with a locking mechanism that provides stable power supply even in the most difficult conditions. Thanks to tight contact and a design that can withstand high currents, it minimizes the risk of overheating and voltage loss.

Color marking plays a special role. Blue connectors are used as power input, gray ones as output for daisy-chaining equipment. In modern Powercon True1 solutions, these functions are combined with the ability to connect under load, which further increases convenience and safety.

High-quality switching is not only convenience, but also protection of investments in stage equipment. Using professional connectors avoids sparking during connection, which significantly reduces the risk of damage to the contacts and their oxidation.

Due to the correct design, Speakon and Powercon are able to operate stably with high currents without heating. This is critically important for powerful systems, where incorrect cable cross-section or weak contact can lead to signal loss or even amplifier failure.

These connectors also minimize the impact of the human factor. If someone accidentally touches the cable with their foot, the latch will not allow it to pull out. For concerts, this means stable sound without unexpected pauses.

When choosing a Speakon-Speakon cable, it is important to pay attention to the quality of the connectors themselves and the conductor material. Reliable contacts and precise fit guarantee stable operation even with intensive use.

The key parameter is the cable cross-section. For powerful speaker systems and subwoofers, it is recommended to use cables with a sufficient cross-section of the copper conductor, which ensures minimal losses and stable energy transfer. The higher the system power, the larger the cross-section should be to avoid heating and voltage drops.

The Maximum Acoustics line offers solutions that meet the requirements of the professional market and ensure high contact reliability in any operating conditions.

Switching to Speakon and Powercon connectors is not just a cable upgrade, but a strategic decision for any professional audio system. They ensure safe connection of professional acoustics, stable operation and durability of the equipment.

By investing in the right sound switching, you invest in the continuity of the show and the preservation of expensive equipment.

You can familiarize yourself with the full range of cables and connectors in our catalog. All products are accompanied by a 36-month warranty, which further confirms their reliability and compliance with professional standards.
