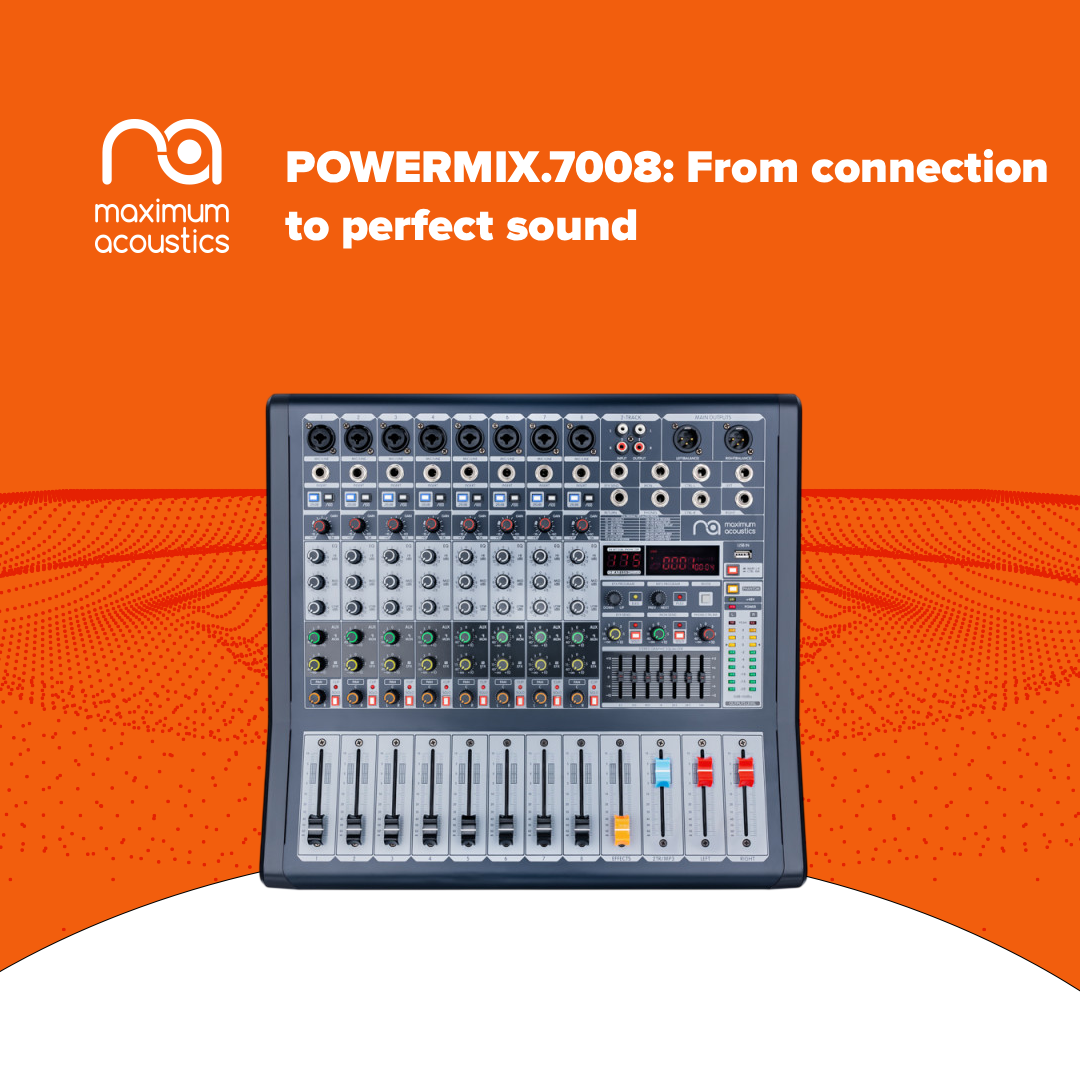

Step-by-step guide to connecting and configuring the POWERMIX.7008 mixing console
When preparing for a concert, wedding, corporate event, or rehearsal, the most time-consuming part is often not sound setup but transporting and connecting the equipment. A separate mixer, a separate power amplifier, an effects processor, dozens of cables, and constantly checking every connection can turn installation into a real challenge. That is why powered mixing consoles have become so popular among mobile DJs, event hosts, musicians, and owners of small venues. Maximum Acoustics POWERMIX.7008, priced at UAH 17,380, combines a full-featured 8-channel mixer, a powerful built-in amplifier, a digital effects processor, Bluetooth connectivity, and a USB/MP3 player in a single compact unit. This significantly reduces the amount of equipment that needs to be transported while making system setup faster, easier, and safer.
Choosing the Right Speakers: The Golden Rules of Compatibility
The first thing every owner of a powered mixer should remember is that it is designed to work with passive loudspeakers. Unlike active speakers, which already contain their own built-in amplifiers, passive speaker systems receive amplified audio directly from the POWERMIX.7008. For this reason, active speakers should never be connected to the outputs of the built-in power amplifier.
The integrated amplifier delivers 2 × 350 W, making passive speaker systems with a continuous RMS power rating of approximately 250 to 400 W per channel the ideal choice. This provides enough headroom to achieve high output levels without overloading the equipment while maintaining clean, distortion-free sound.
Another critical specification is impedance. The mixer is designed to operate with 4-ohm or 8-ohm loads. Using 8-ohm speakers allows the amplifier to operate under lighter conditions, while 4-ohm speakers enable maximum power output. However, connecting speaker systems with a combined impedance below 4 ohms is strongly discouraged, as this may cause the amplifier to overheat, activate its protection circuitry, or even suffer permanent damage.
Step-by-Step System Setup
Following the correct startup sequence helps prevent loud pops, speaker overload, and damage to high-frequency drivers.
Begin by connecting your passive speakers using Speakon or Jack speaker cables. Next, set all channel faders, the Master level, and all volume controls to their minimum positions. Only after that should microphones, musical instruments, or other audio sources be connected.
The POWERMIX.7008 features eight discrete microphone preamps with exceptionally low noise and +48 V phantom power, allowing it to work with both dynamic and condenser microphones. Its combination Neutrik balanced connectors provide reliable contact and stable signal transmission even during intensive professional use.
Once all equipment has been connected, power on the mixer. Gradually increase the Gain control for each channel while monitoring the Peak indicator to avoid clipping. Only after properly adjusting the input gain should you raise the individual channel levels and the Master output.
It is particularly important never to power on the mixer with the channel faders or Master level already raised. Sudden startup transients may reach the loudspeakers and damage high-frequency drivers, which are especially sensitive to voltage spikes.
Sound Adjustment: EQ and Built-in DSP
Each channel of the POWERMIX.7008 is equipped with a 3-band equalizer, allowing quick and effective sound shaping for different audio sources.
For vocals, it is usually enough to slightly reduce the low frequencies around 80 Hz to eliminate unwanted rumble, gently boost the midrange around 2.5 kHz to improve speech intelligibility, and add a subtle lift at 12 kHz for a more open and airy sound.
For acoustic guitars or keyboards, a slight boost in the low frequencies often produces a fuller tone while keeping the midrange as natural as possible. Thanks to its wide 10 Hz to 60 kHz frequency response, extremely low 0.01% total harmonic distortion, and an impressive 112 dB signal-to-noise ratio, the mixer delivers clean, detailed sound even at high output levels.
The built-in DSP processor with 256 effects deserves special attention. For speech reinforcement, conferences, or karaoke, short Room or Hall reverbs with minimal decay provide natural ambience while maintaining excellent voice clarity. For singing, Plate, longer Hall, or a light Delay effect adds depth and richness without sacrificing vocal definition.
Modern Connectivity: Bluetooth and USB
Today's audio systems are difficult to imagine without wireless connectivity. The POWERMIX.7008 supports Bluetooth, allowing a smartphone or tablet to be paired in just a few seconds. This is especially convenient for playing background music before an event, providing music during breaks, or quickly streaming backing tracks without additional cables.
For completely standalone operation, the integrated USB MP3 player is an excellent solution. Simply copy your audio files to a USB flash drive, insert it into the USB port, and control playback directly from the mixer without the need for a computer or external media player.
Maximum Acoustics POWERMIX.7008 is a practical solution for anyone who needs a compact, reliable, and mobile sound reinforcement system without carrying multiple separate devices. Its eight professional microphone preamps, built-in power amplifier, and premium Neutrik connectors make it an excellent choice for weddings, corporate events, rehearsals, small concerts, bars, karaoke venues, educational institutions, and mobile sound installations. The 36-month official warranty from Maximum Acoustics further demonstrates the manufacturer's confidence in the product's quality and reliability, making the POWERMIX.7008 a smart long-term investment for professional audio applications.
